3D Prints
These are some of the 3d printable things I've designed. I'm making them available to the public under the CC BY-NC-SA 4.0 license.
Some may have underling .scad files, which you can download and tweak using OpenSCAD on your operating system of choice, export your changes to STL, and print your modified version. If you design a useful modification, send it to me and I may start a community remixes page here!
Some of these prints rely on the awesome threads.scad module, which you can download here.Designs
Prints RSS Feed
-
Case for RAKWireless RAK19007 (Meshtastic)
A custom external hard-drive form factor, 3d-printed case for the RAK19007 base. Designed to accommodate GPS, Bluetooth, and LoRA antennas internally. Comes with Meshtastic logo on the front (as that's what I'm using this for), more customization options may be available in the future. To Assemble, you'll need: 4 M.2x5mm screws, 4 M3 Nuts, 4 M3x12mm screws. Can be printed without supports if your printer can bridge decently.
-
Wire Mount w/ Command Strip
A wire holder designed to semi-permanently hold a set of iPhone/Apple watch charge cables in place against the back of nightstand, table, or desk. Should work for most similar cables. Use 4x M2.5 screws/nuts to hold the halves together, and place a command strip on the back to adhere to the surface.
-

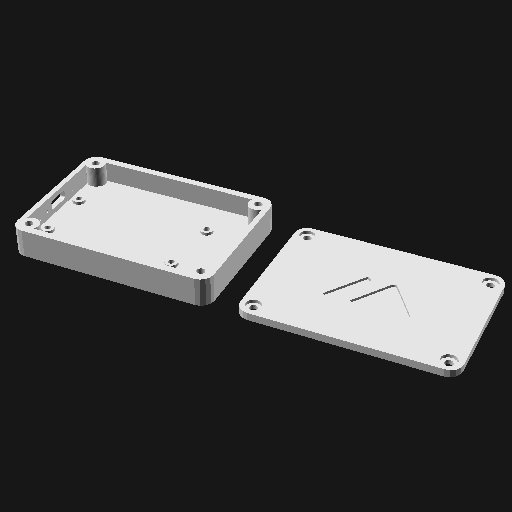

Red Button Case
An enclosure for a KE-011 push button and a microcontroller to make a cool 'Launch Button'. Great for software releases, just use it as an enter key! To hold the top on, use four M3 screws, black colored ones look the best. For more info, see the blog post.
-
Wire Clip
A wire clip designed originally for hanging christmas lights, but can be used for most small cables. Intended to hang on a wall or vertical surface using a small command strip.
-

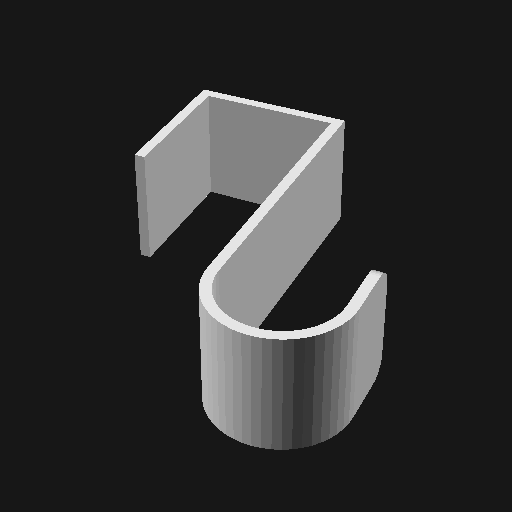

Over Door Hook v2
A simple over-door hook for hanging (light) articles of clothing, with rounded edges.
-
Ethernet Ceiling Hanger
A hook for hanging a single CAT5/6 cable across a drop ceiling's metal frame. Only works for *flat* ceiling tiles that rest above the frame.
-
Airtag Keychain
A fob for holding an Apple Airtag that can be put on a key ring. Requires 3 m2.5x6mm screws and nuts.
-

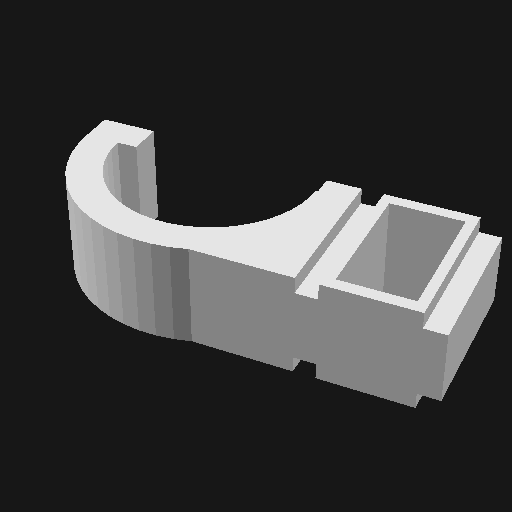

Christmas Light Hook
A simple hook for hanging lights from trees, etc. Attaches to the retractable christmas light poles that can be found at stores like home depot, normally designed to place clips for icicle lights. Print with supports to ensure notches stay intact. I used 40% honeycomb infill, but others may be just as fine.
-

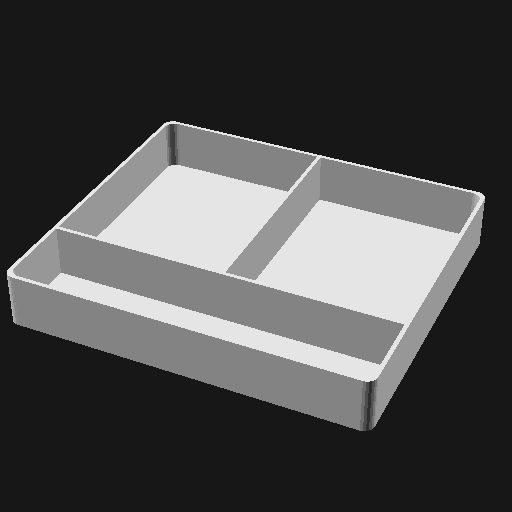

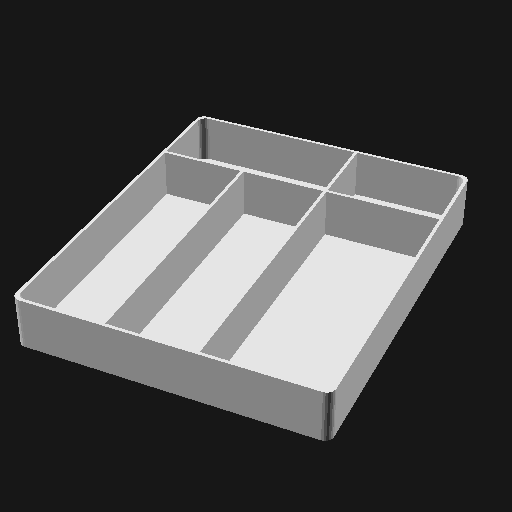

Drawer Organizer II
A different variation on my drawer organizer, slightly smaller and with different dividers.
-
Drawer Organizer
A bathroom drawer organizer originally designed to hold glasses, dental floss, etc.
-

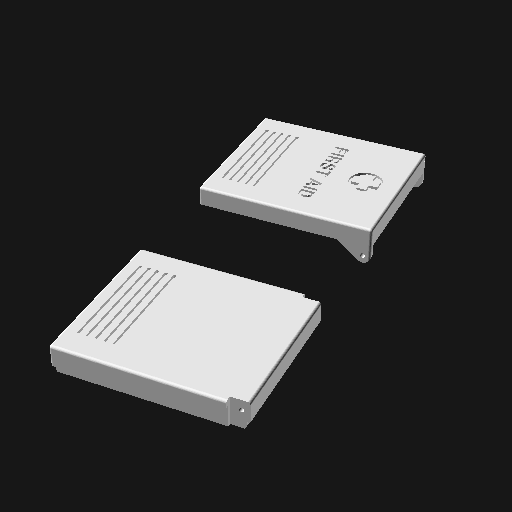

First Aid Box
A small first aid box, designed to hold multiple band aids, etc. Requires 2x m2.5 screws for the hinge. Print with the words face-down.
-
Flat duct tape roll
A center piece to wrap duct tape around, for compact use when traveling. Wind several feet of tape in a compact center piece.
-

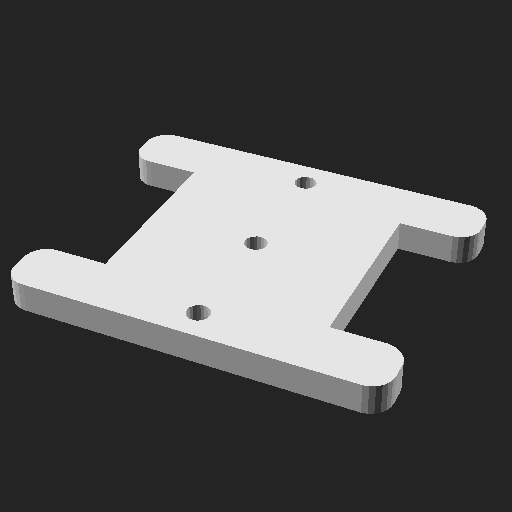

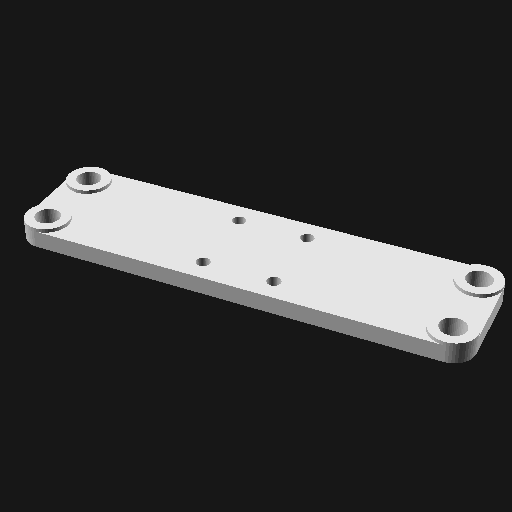

Headphone Bracket
A mounting bracket for the above headphone hook. Designed to use the existing bracket for my ASUS monitors - do a test print to check for fit.
-

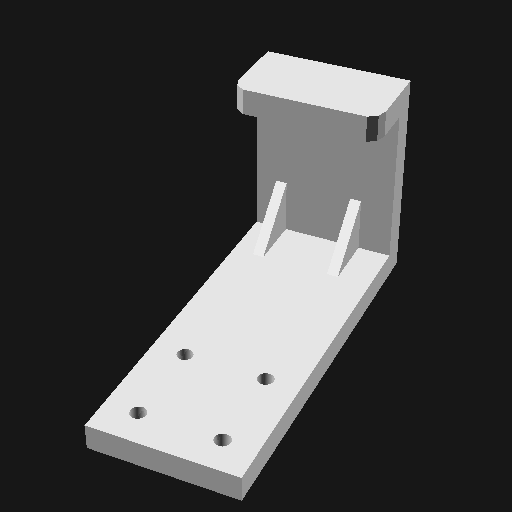

Headphone Hook
A hook designed for holding Bose QC35II headphones. Designed to be attached with the 'Headphone Bracket' using m2.5 screws to allow for mounting under an ASUS computer monitor. For successful printing (and strength), print this on its side so that it forms an 'L' shape.
-

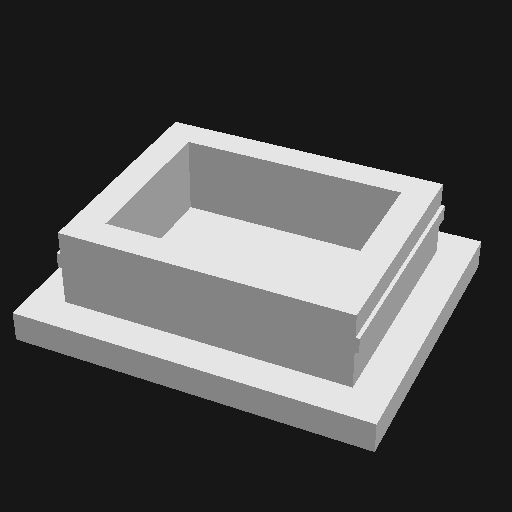

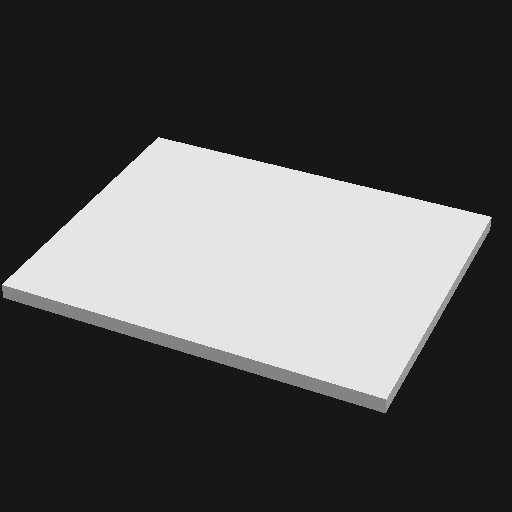

Keystone Blanking Plate
A flat blanking plate that fits over keystone slots. May require slight size tweaks for your printer.
-

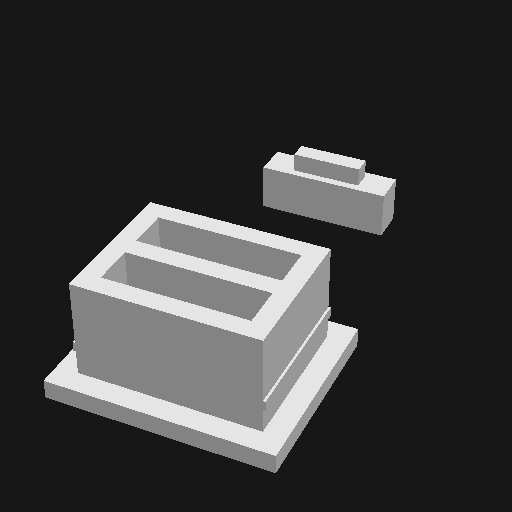

Keystone LED Plate
A flat blanking plate with light diffusers and holes for 3mm leds. May require tweaks to the .scad for your printer, print the large part in the color of your choice, and two of the small insert in a translucent / white plastic.
-

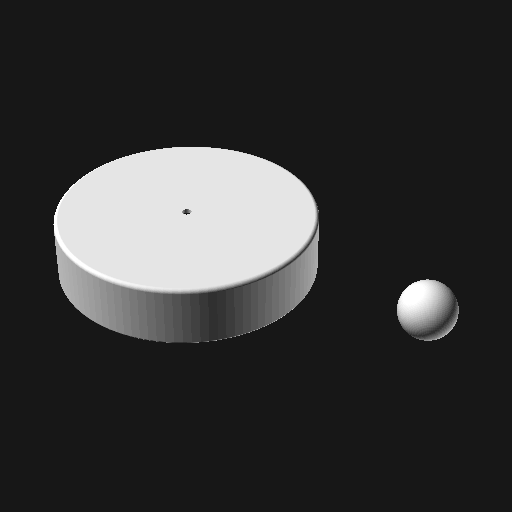

Mason Jar Cap
A cap for small-mouth mason jars, great for storing things like q-tips or other small items. Requires one small m2.5 or similar screw to hold the handle on.
-
Mason Jar Soap Dispenser
A replacement lid for narrow mouth mason jars to allow attaching a Softsoap soap pump. The pump may need to have the tube trimmed to fit depending on the height of the jar.
-
Mason Jar Toothbrush Holder
For narrow-mouth jars, this is a replacement for the lid which holds toothbrushes
-

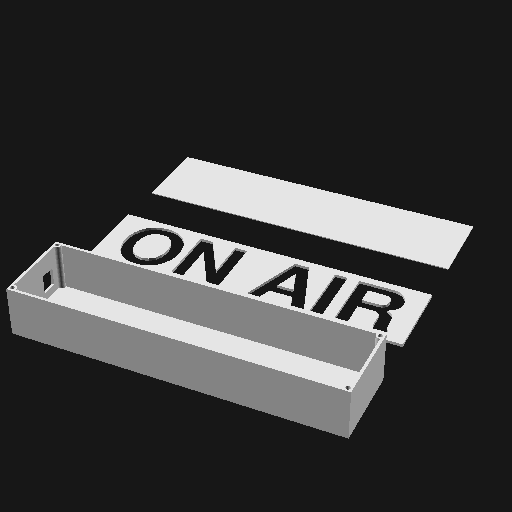

ON AIR Sign
A sign designed to be illuminated internally with custom electronics & LEDs. This contains three pieces - the main box, the lettering, and a thin lens. The lens should be printed in a clear/translucent filament, and the rest in something opaque. Assemble using four M2.5x8mm screws.
-

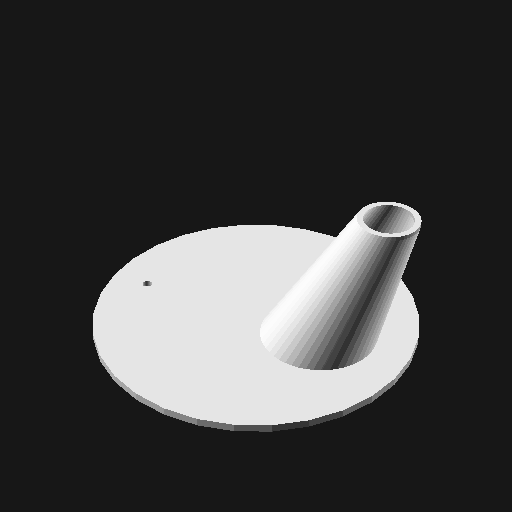

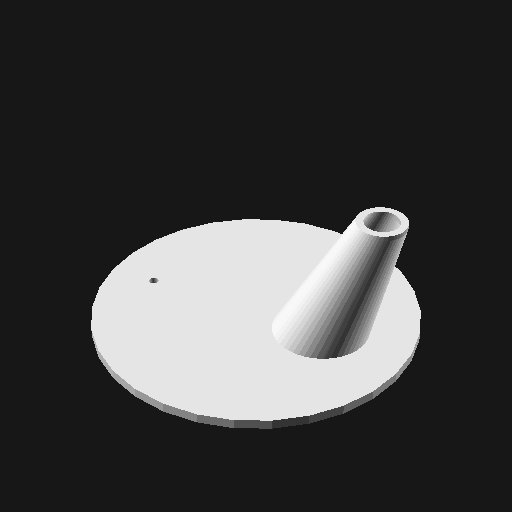

Pour Lid (wide mouth)
A mason jar lid designed to allow for easy pouring for watering of small plants. For wide-mouth jars.
-
-
Shelving Pin
6mm pin for holding up shelves. Print horizontally for strength. Contains a triangular support to help prevent the pin from bending.
-

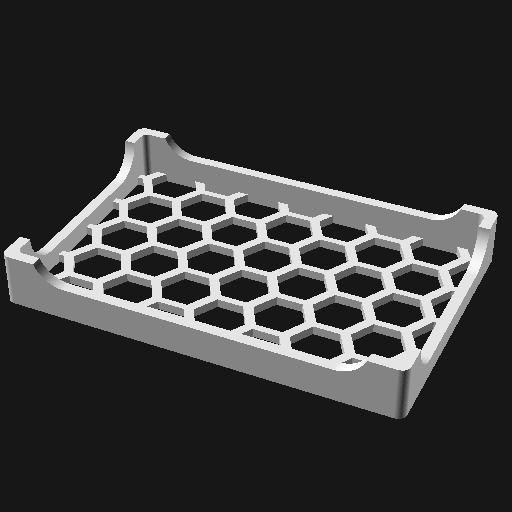

Soap Saver (corner version)
A single-piece soap dish/platform with hexagon drain holes. It's printed upside down in a single piece. When used, the legs face downward.
-
-

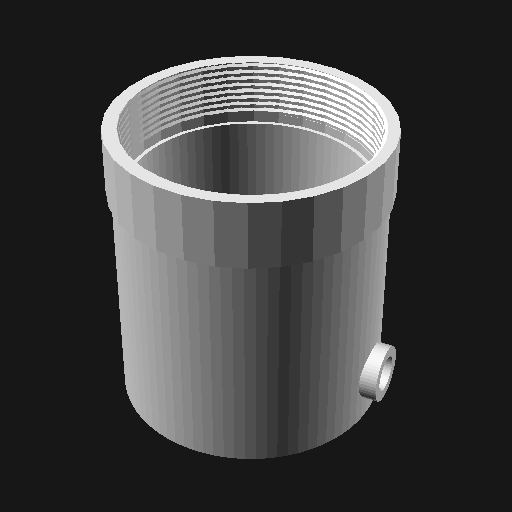

Telescope Part
Repair part for a Tasco Telescope (although it may fit others). This is the part where the lenses/diagonals go on the end of the focus tube. Has a hole for a thumbscrew, and is threaded to attach to the sliding part of the telescope.
-

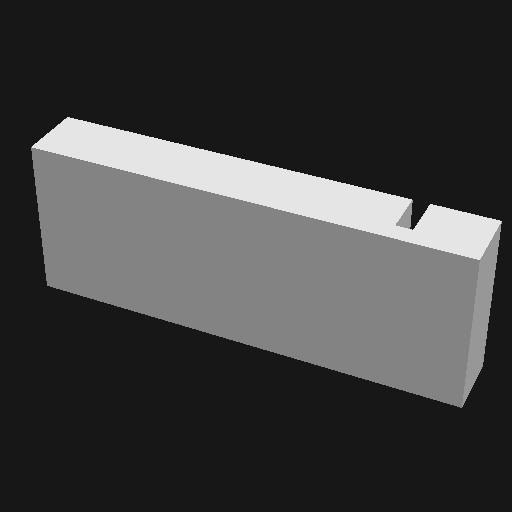

Trash Can Wall Spacer
A spacer to hold a foot-actuated garbage can away from the wall. This is designed for half-circle trashcans. The notch goes into the bottom edge of the can on the side towards the wall. Print in the vertical orientation for strength.
-

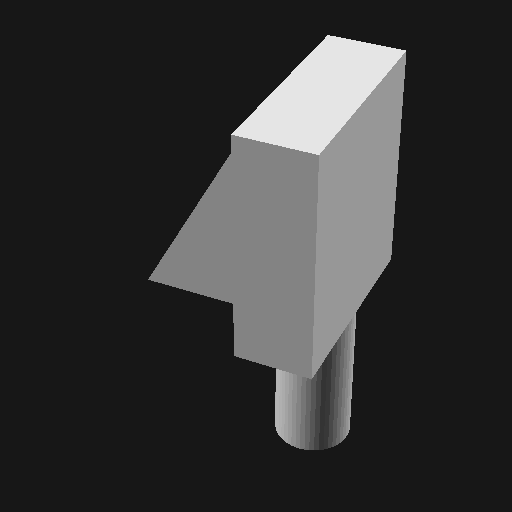

Typewriter Key
A replacement typewriter key for my Remington Noiseless Typewriter. Customize the .scad file to change the letter.
-
-
Watch Stand
A stand for two watches. Designed to fit inside drawers where the maximum height is around 8.5/9cm. Print on its side.
-

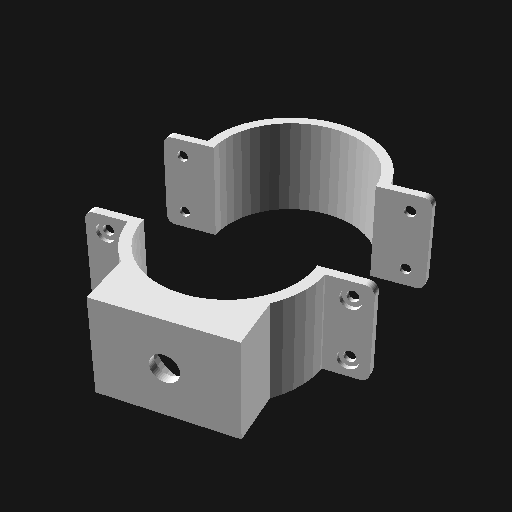

Webcam Pole Mount
A webcam mount I designed for my monitor stand, which is 35.5mm in diameter. It has a hole for a bolt for attaching the webcam, and has holes for m2.5 screws to hold it together.
-

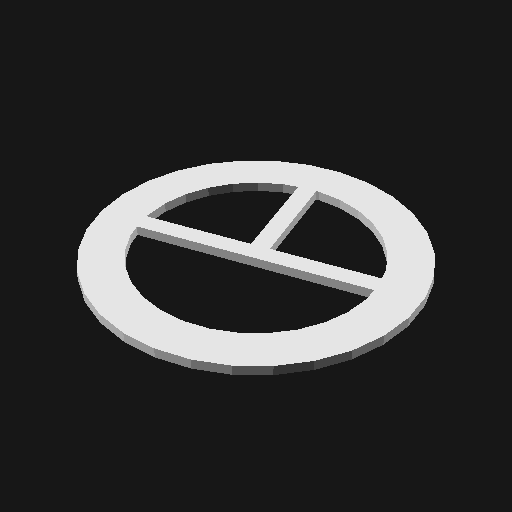

Duck Tape Roll
A flat piece of plastic that can be wrapped in duck tape to make a compact roll for easy carrying.
-

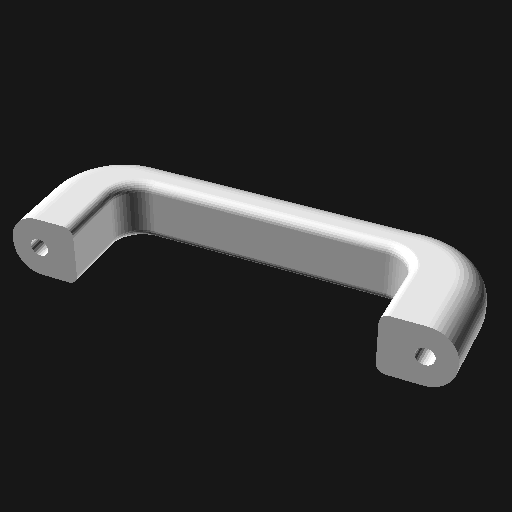

Handle
A handle. No extra explanation needed. Needs to be printed with scaling factor from in -> mm.
These images were rendered using openscad and the script render-prints.sh
